Heavy duty coil winding machine with gearbox E-2500SGB

Specifications can be modified according to customer requirements.

Max Wire Dia. & profile wire:
0.01 – 30mm
Max winding length:
2250 mm
Max distance between points:
2500 mm
Spindle height (from floor):
1300 mm
Tailstock movement:
1500 mm
Guider precision:
Manual
Main shaft motor:
7.5 HP
Winding shaft speed:
0 - 60 rpm.
Electrical supply:
3 x 380Vca - 50 / 60 Hz
Air supply:
6 bar
Net weight:
1500 kg Approx.
User interface:
Standard with the machine, turns counter, simple program - CMZ240
Full touch screen system available upon request.
Max. No. of programmable windings:
130
Max. No. of windings per coil:
12
Type of programming:
CNC

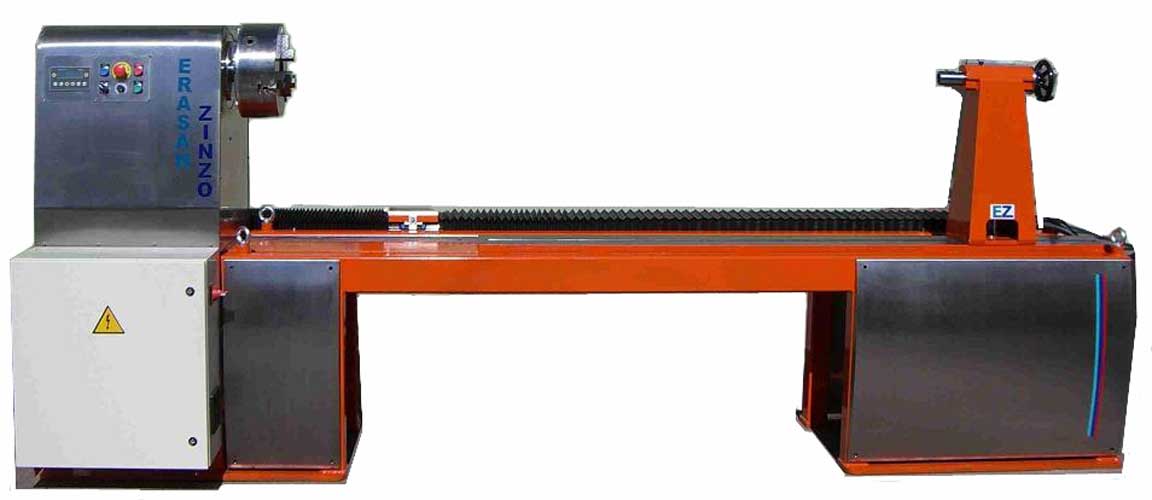

Heavy Duty Coil winding machine E-2500
Click for larger image

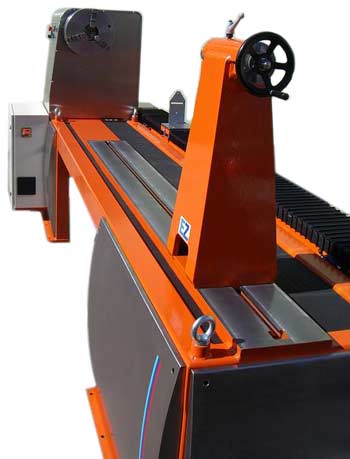

Heavy Duty Coil winding machine E-2500
Click for larger image

The E-2500 is a large, high powered, floor standing style coil winding machine. The robust frame is fabricated from heavy guage galvanised steel, with machine covers in stainless steel, and it is equipped with a face plate, tailstock with security closure, guider system and foot pedal.
The machine has an advanced CNC control, and complex windings can be quickly set up by means of electronic programming.
This coil winding machine is specially designed for the manufacture of large scale inductive devices, typically rotor coils for use in the wind turbine industry, large electric motors and generators, etc. using aluminum or copper wires, (including rectangular or flat wires with a special guider).
The layout and design of the winding machine facilitates the placement of ancillary materials such as end-fillers or insulation paper and foil of various types

Download the product datasheet here english datasheet for the heavy duty coil winding machine german datasheet for the heavy duty coil winding machine
