Wire guide heads for benchtop coil winding machines

Roller guide head
Suitable for use on the single spindle coil winding machine WH-751. Brass rollers, mounted on precision bearings, with adjustment of the wire path feed the wire onto the workpiece. Recommended wire range 1.0mm to 3.0mm.
Roller guide head
with mechanical micro positioning system to allow two guide heads to be adjusted to work in parallel on a two spindle coil winding machine.
Suitable for our single spindle coil winding machine WH-751 and two spindle heavy duty coil winding machine WH-752. Recommended wire range 1.0mm to 3.0mm.

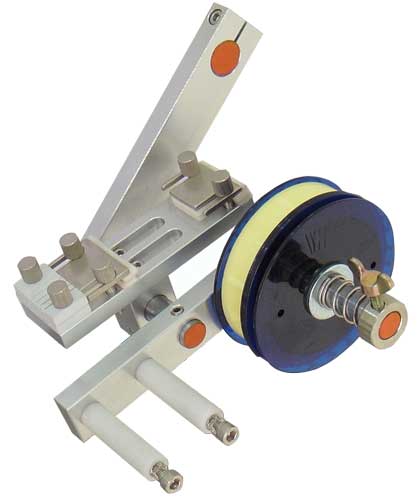

Guide tube feeder head
A feeder head for fine wires, equipped with an adjustable felt pad to clean the wire and provide back tension, and ceramic parts at points of contact to protect the wire insulation. The user may mount a choice of 0.3, 0.5, 0.8 or 1.0mm bore wire guide tubes according to the size of wire in use. This unit is provided with a mechanical micro positioning system to allow two guide heads to be adjusted to work in parallel on a two spindle coil winding machine.
Guide tube feeder head - Quick tube change
This unit has all of the features of the standard guide tube feeder head (above) with the additional facility of a clip-in holder for guide tubes to enable fast tube changeover where multiple windings are required on a single bobbin.
Multi wire feeder head - 4-wire
This wire guide system can present up to four different sizes of wire at the workpiece ready for use - ideal for winding small transformers and other wound components that require multiple windings. It also provides a margin and cover taping capability to allow these operations to be carried out efficiently during the winding process with the minimum of handling. Recommended wire range 0.???mm to ?.???mm
Download the product datasheet here english datasheet on wire guiders czech datasheet on wire guiders german datasheet on wire guiders
