Heavy duty coil winding machine E-900

Specifications can be modified according to customer requirements.

Max Wire Diameter & profile wire:
0.01 – 10mm
Max winding length:
800 mm
Max distance between points:
900 mm
Max Winding Diameter:
560 mm
Guider precision:
0.01 mm
Main shaft motor:
Brushless Servo Motor
Guider motor (Brushless):
0.4HP / 300W (2.2Nm)
Winding shaft speed:
0 - 400 rpm / 0 – 200 rpm*
Electrical supply:
3 x 380Vca - 50 / 60 Hz
Net weight:
800 kg approx.
User interface:
15 inch (381 mm) colour touch screen
Max. No. of programmable windings:
10,000 (unlimited with SD card)
Max. No. of windings / steps - per coil / cycle:
200
Type of programming:
CNC with colour touch screen

Torque and Speed

*We can produce the torque and drive to your requirements, shown below are typical speed & Torque options for the E900 model. However please contact us should you require other ratings.

Belt Position

200 RPM version

400 RPM version

Torque (Nm)

Max Speed (Rpm)

Torque (Nm)

Max Speed (Rpm)

1

300

0-200

165

0-400

2



300

0-200

Heavy duty coil winding machine series
Click for larger image

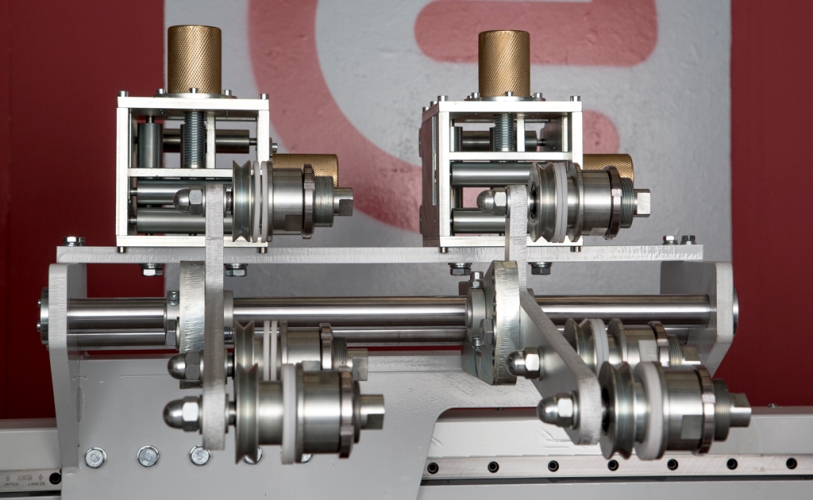

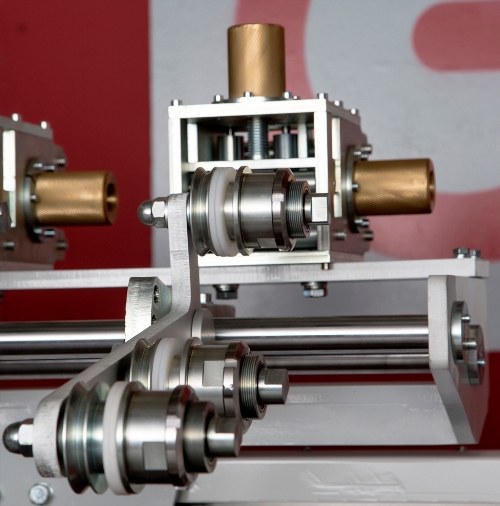

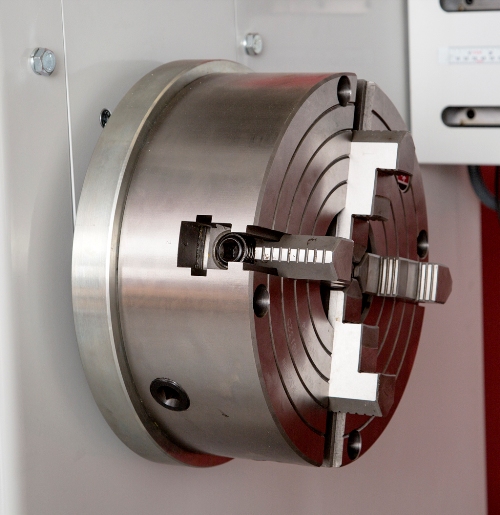

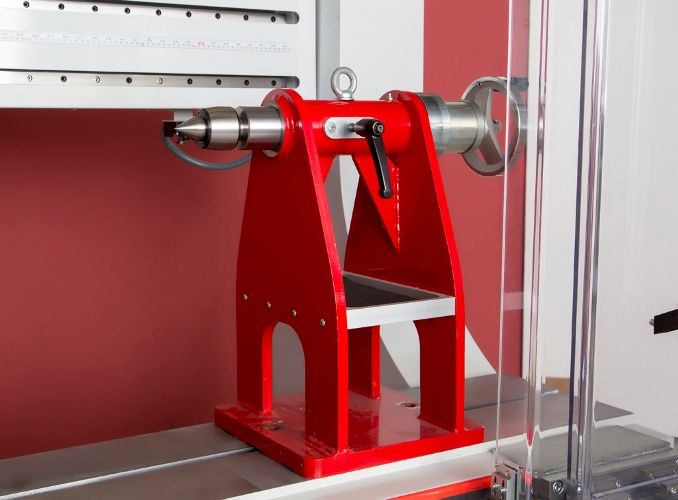

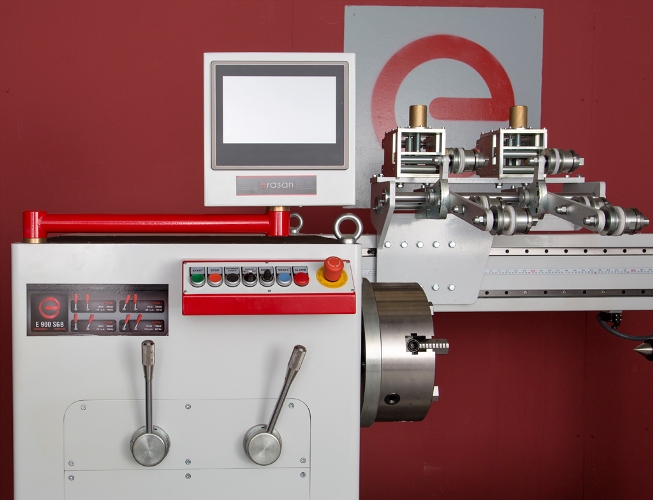

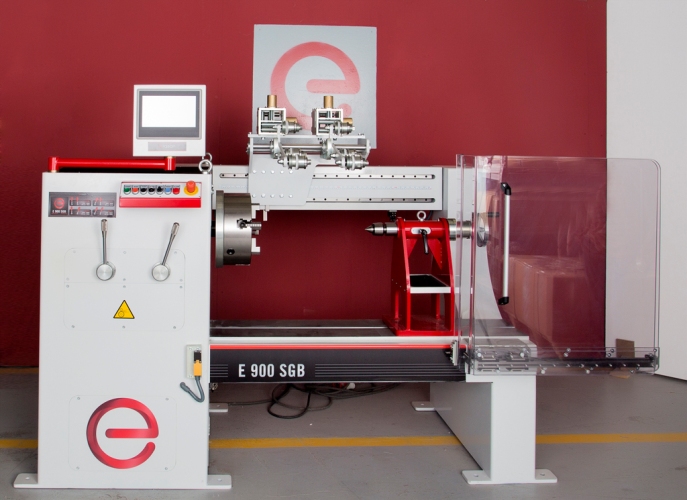

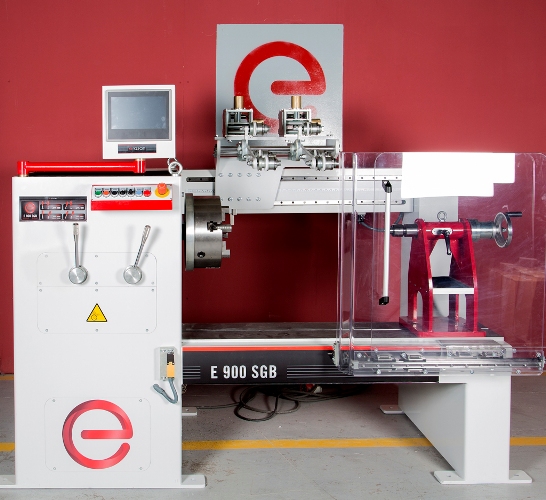

The E-900 is a powerful and compact one spindle floor standing coil winding machine with a colour touch screen CNC, precision servomotor drive. The winding machine is robustly constructed in heavy gauge welded galvanised steel, with covers in stainless steel, and is provided with a fixture plate, tailstock with security closure, guider system, safety guard and foot pedal
The applications of this machine include the manufacture of medium sized coils, including solenoids, motors, inductors, and power distribution transformers, typically in the range of 10 to 600 KVA.
User-selectable speed ranges of up to 400 rpm* allow fast winding with small wires whilst delivering high torque for winding heavy wires.
The colour touch screen provides a simple and intuitive programming system with graphical interface and on-screen help, allowing even the most complex windings to be programmed in short periods of time in the user's choice of language. A foot pedal is provided so that the operator can control the machine manually if required.
Program storage is directly to a standard SD memory card. This allows a fast, simple program backup, with the option of FTP, users can even edit / document and backup winding programs using Microsoft© excel.
